#include <svgelement.h>

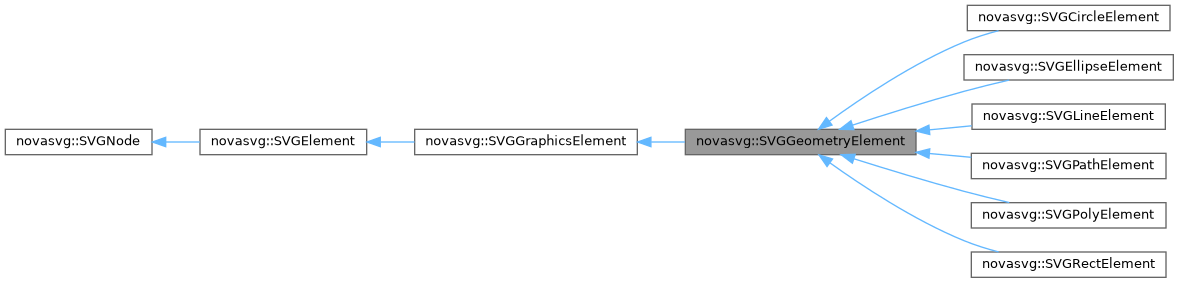

Inheritance diagram for novasvg::SVGGeometryElement:

[legend]

Collaboration diagram for novasvg::SVGGeometryElement:

[legend]

Public Member Functions
	SVGGeometryElement (Document *document, ElementID id)

bool	isGeometryElement () const final

Rect	fillBoundingBox () const override

Rect	strokeBoundingBox () const override

void	layoutElement (const SVGLayoutState &state) override

bool	isRenderable () const

FillRule	fill_rule () const

FillRule	clip_rule () const

virtual Rect	updateShape (Path &path)=0

void	updateMarkerPositions (SVGMarkerPositionList &positions, const SVGLayoutState &state)

void	render (SVGRenderState &state) const override

const Path &	path () const

Public Member Functions inherited from novasvg::SVGGraphicsElement
	SVGGraphicsElement (Document *document, ElementID id)

bool	isGraphicsElement () const final

const SVGTransform &	transform () const

Transform	localTransform () const override

SVGPaintServer	getPaintServer (const Paint &paint, float opacity) const

StrokeData	getStrokeData (const SVGLayoutState &state) const

Public Member Functions inherited from novasvg::SVGElement
	SVGElement (Document *document, ElementID id)

virtual	~SVGElement ()=default

bool	hasAttribute (std::string_view name) const

const std::string &	getAttribute (std::string_view name) const

bool	setAttribute (std::string_view name, const std::string &value)

const Attribute *	findAttribute (PropertyID id) const

bool	hasAttribute (PropertyID id) const

const std::string &	getAttribute (PropertyID id) const

bool	setAttribute (int specificity, PropertyID id, const std::string &value)

void	setAttributes (const AttributeList &attributes)

bool	setAttribute (const Attribute &attribute)

virtual void	parseAttribute (PropertyID id, const std::string &value)

SVGElement *	previousElement () const

SVGElement *	nextElement () const

SVGNode *	addChild (std::unique_ptr< SVGNode > child)

SVGNode *	firstChild () const

SVGNode *	lastChild () const

ElementID	id () const

const AttributeList &	attributes () const

const SVGPropertyList &	properties () const

const SVGNodeList &	children () const

virtual Rect	paintBoundingBox () const

SVGMarkerElement *	getMarker (std::string_view id) const

SVGClipPathElement *	getClipper (std::string_view id) const

SVGMaskElement *	getMasker (std::string_view id) const

SVGFilterElement *	getFilterElement (std::string_view id) const

SVGPaintElement *	getPainter (std::string_view id) const

SVGElement *	elementFromPoint (float x, float y)

template<typename T >
void	transverse (T callback)

void	addProperty (SVGProperty &value)

SVGProperty *	getProperty (PropertyID id) const

Size	currentViewportSize () const

float	font_size () const

void	cloneChildren (SVGElement *parentElement) const

std::unique_ptr< SVGNode >	clone (bool deep) const final

virtual void	build ()

void	layoutChildren (SVGLayoutState &state)

virtual void	layout (SVGLayoutState &state)

void	renderChildren (SVGRenderState &state) const

virtual std::shared_ptr< Canvas >	applyFilterPrimitive (SVGFilterContext &context) const

bool	isDisplayNone () const

bool	isOverflowHidden () const

bool	isVisibilityHidden () const

bool	isHiddenElement () const

bool	isPointableElement () const

const SVGClipPathElement *	clipper () const

const SVGMaskElement *	masker () const

const SVGFilterElement *	filterElement () const

float	opacity () const

MixBlendMode	mixBlendMode () const

bool	isElement () const final

Public Member Functions inherited from novasvg::SVGNode
	SVGNode (Document *document)

virtual	~SVGNode ()=default

virtual bool	isTextNode () const

virtual bool	isPaintElement () const

virtual bool	isTextPositioningElement () const

Document *	document () const

SVGRootElement *	rootElement () const

SVGElement *	parentElement () const

void	setParentElement (SVGElement *parent)

bool	isRootElement () const

Additional Inherited Members
Static Public Member Functions inherited from novasvg::SVGElement
static std::unique_ptr< SVGElement >	create (Document *document, ElementID id)

Detailed Description

Definition at line 1927 of file svgelement.h.

Constructor & Destructor Documentation

◆ SVGGeometryElement()

NOVASVG_INLINE novasvg::SVGGeometryElement::SVGGeometryElement	(	Document *	document,
		ElementID	id
	)

Definition at line 3547 of file svgelement.h.

Member Function Documentation

◆ clip_rule()

FillRule novasvg::SVGGeometryElement::clip_rule ( ) const

inline

Definition at line 1940 of file svgelement.h.

◆ fill_rule()

FillRule novasvg::SVGGeometryElement::fill_rule ( ) const

inline

Definition at line 1939 of file svgelement.h.

◆ fillBoundingBox()

Rect novasvg::SVGGeometryElement::fillBoundingBox ( ) const

inlineoverridevirtual

Reimplemented from novasvg::SVGElement.

Definition at line 1933 of file svgelement.h.

Referenced by strokeBoundingBox().

◆ isGeometryElement()

bool novasvg::SVGGeometryElement::isGeometryElement ( ) const

inlinefinalvirtual

Reimplemented from novasvg::SVGNode.

Definition at line 1931 of file svgelement.h.

◆ isRenderable()

bool novasvg::SVGGeometryElement::isRenderable ( ) const

inline

Definition at line 1937 of file svgelement.h.

Referenced by render().

◆ layoutElement()

NOVASVG_INLINE void novasvg::SVGGeometryElement::layoutElement ( const SVGLayoutState & state )

overridevirtual

Reimplemented from novasvg::SVGElement.

Definition at line 3572 of file svgelement.h.

References novasvg::SVGGraphicsElement::getPaintServer(), novasvg::SVGGraphicsElement::getStrokeData(), novasvg::SVGElement::layoutElement(), novasvg::Path::reset(), novasvg::render::state::stroke, updateMarkerPositions(), and updateShape().

◆ path()

const Path & novasvg::SVGGeometryElement::path ( ) const

inline

Definition at line 1947 of file svgelement.h.

◆ render()

NOVASVG_INLINE void novasvg::SVGGeometryElement::render ( SVGRenderState & state ) const

overridevirtual

Reimplemented from novasvg::SVGElement.

Definition at line 3669 of file svgelement.h.

References novasvg::SVGPaintServer::applyPaint(), novasvg::SVGRenderState::beginGroup(), novasvg::Clipping, novasvg::SVGRenderState::currentTransform(), novasvg::SVGRenderState::endGroup(), isRenderable(), novasvg::SVGGraphicsElement::localTransform(), novasvg::SVGRenderState::mode(), and novasvg::Color::White.

◆ strokeBoundingBox()

NOVASVG_INLINE Rect novasvg::SVGGeometryElement::strokeBoundingBox ( ) const

overridevirtual

Reimplemented from novasvg::SVGElement.

Definition at line 3552 of file svgelement.h.

References fillBoundingBox(), novasvg::Rect::inflate(), novasvg::SVGPaintServer::isRenderable(), novasvg::Miter, NOVASVG_MAX, NOVASVG_SQRT2, novasvg::Square, strokeBoundingBox(), and novasvg::Rect::unite().

Referenced by strokeBoundingBox().

◆ updateMarkerPositions()

NOVASVG_INLINE void novasvg::SVGGeometryElement::updateMarkerPositions	(	SVGMarkerPositionList &	positions,
		const SVGLayoutState &	state
	)

Definition at line 3587 of file svgelement.h.

References novasvg::SVGAngle::AutoStartReverse, novasvg::Close, novasvg::CubicTo, novasvg::PathIterator::currentSegment(), novasvg::SVGElement::getMarker(), novasvg::PathIterator::isDone(), novasvg::Path::isEmpty(), novasvg::LineTo, novasvg::MoveTo, novasvg::PathIterator::next(), and NOVASVG_PI.

Referenced by layoutElement().

◆ updateShape()

virtual Rect novasvg::SVGGeometryElement::updateShape ( Path & path )

pure virtual

Implemented in novasvg::SVGLineElement, novasvg::SVGRectElement, novasvg::SVGEllipseElement, novasvg::SVGCircleElement, novasvg::SVGPolyElement, and novasvg::SVGPathElement.

Referenced by layoutElement().

The documentation for this class was generated from the following file:

/home/runner/work/novasvg/novasvg/include/novasvg/detail/svgelement.h
