paint.h File Reference

#include "private.h"
#include "utils.h"
#include <ctype.h>

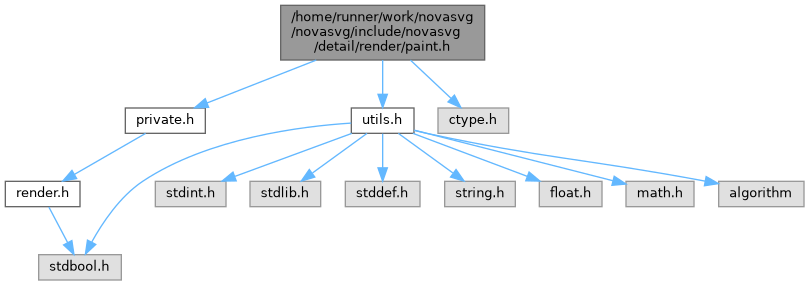

Include dependency graph for paint.h:

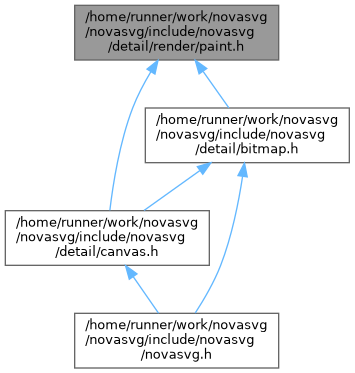

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	novasvg::render::color_entry_t

Namespaces
namespace	novasvg
	Main namespace for the NovaSVG library.
namespace	novasvg::render

Macros
#define	MAX_NAME   20

Functions
NOVASVG_INLINE void	novasvg::render::color_init_rgb (color_t *color, float r, float g, float b)
	Initializes a color using RGB components in the 0-1 range.
NOVASVG_INLINE void	novasvg::render::color_init_rgba (color_t *color, float r, float g, float b, float a)
	Initializes a color using RGBA components in the 0-1 range.
NOVASVG_INLINE void	novasvg::render::color_init_rgb8 (color_t *color, int r, int g, int b)
	Initializes a color using RGB components in the 0-255 range.
NOVASVG_INLINE void	novasvg::render::color_init_rgba8 (color_t *color, int r, int g, int b, int a)
	Initializes a color using RGBA components in the 0-255 range.
NOVASVG_INLINE void	novasvg::render::color_init_rgba32 (color_t *color, unsigned int value)
	Initializes a color from a 32-bit unsigned RGBA value.
NOVASVG_INLINE void	novasvg::render::color_init_argb32 (color_t *color, unsigned int value)
	Initializes a color from a 32-bit unsigned ARGB value.
NOVASVG_INLINE void	novasvg::render::color_init_hsl (color_t *color, float h, float s, float l)
	Initializes a color with the specified HSL color values.
NOVASVG_INLINE void	novasvg::render::color_init_hsla (color_t *color, float h, float s, float l, float a)
	Initializes a color with the specified HSLA color values.
NOVASVG_INLINE unsigned int	novasvg::render::color_to_rgba32 (const color_t *color)
	Converts a color to a 32-bit unsigned RGBA value.
NOVASVG_INLINE unsigned int	novasvg::render::color_to_argb32 (const color_t *color)
	Converts a color to a 32-bit unsigned ARGB value.
NOVASVG_INLINE int	novasvg::render::color_parse (color_t *color, const char *data, int length)
	Parses a color from a string using CSS color syntax.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_rgb (float r, float g, float b)
	Creates a solid RGB paint.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_rgba (float r, float g, float b, float a)
	Creates a solid RGBA paint.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_color (const color_t *color)
	Creates a solid color paint.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_linear_gradient (float x1, float y1, float x2, float y2, spread_method_t spread, const gradient_stop_t *stops, int nstops, const matrix_t *matrix)
	Creates a linear gradient paint.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_radial_gradient (float cx, float cy, float cr, float fx, float fy, float fr, spread_method_t spread, const gradient_stop_t *stops, int nstops, const matrix_t *matrix)
	Creates a radial gradient paint.
NOVASVG_INLINE paint_t *	novasvg::render::paint_create_texture (surface_t *surface, texture_type_t type, float opacity, const matrix_t *matrix)
	Creates a texture paint from a surface.
NOVASVG_INLINE paint_t *	novasvg::render::paint_reference (paint_t *paint)
	Increments the reference count of a paint object.
NOVASVG_INLINE void	novasvg::render::paint_destroy (paint_t *paint)
	Decrements the reference count and destroys the paint if the count reaches zero.
NOVASVG_INLINE int	novasvg::render::paint_get_reference_count (const paint_t *paint)
	Retrieves the reference count of a paint object.

Macro Definition Documentation

MAX_NAME

#define MAX_NAME   20

Definition at line 109 of file paint.h.
