#include "render.h"

Include dependency graph for private.h:

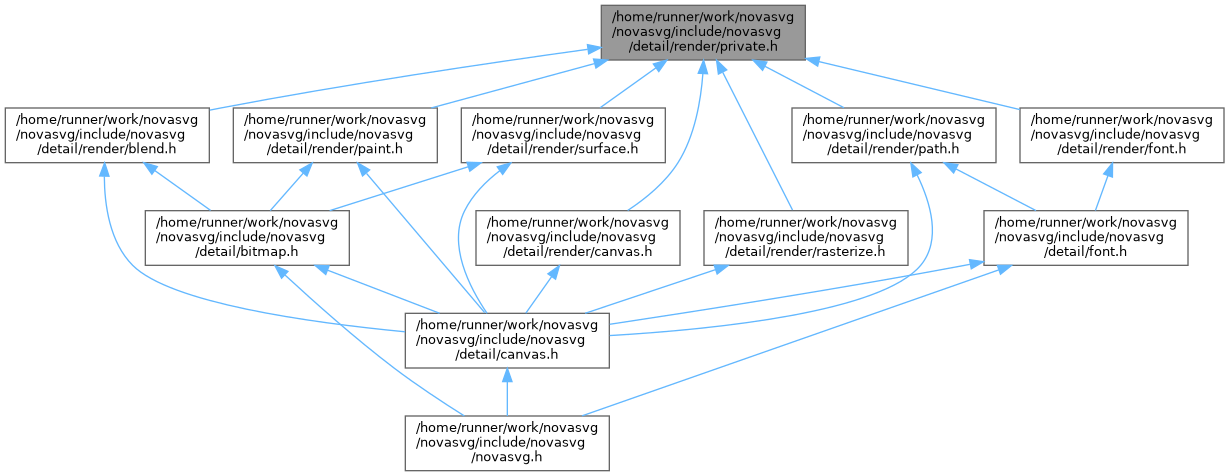

This graph shows which files directly or indirectly include this file:

Classes
struct	novasvg::render::surface

struct	novasvg::render::path

struct	novasvg::render::paint

struct	novasvg::render::solid_paint_t

struct	novasvg::render::gradient_paint_t

struct	novasvg::render::texture_paint_t

struct	novasvg::render::span_t

struct	novasvg::render::span_buffer_t

struct	novasvg::render::stroke_dash_t

struct	novasvg::render::stroke_style_t

struct	novasvg::render::stroke_data_t

struct	novasvg::render::state

struct	novasvg::render::canvas

Namespaces
namespace	novasvg
	Main namespace for the NovaSVG library.

namespace	novasvg::render

Macros
#define	NOVASVG_PRIVATE_H

#define	novasvg_init_reference(ob) ((ob)->ref_count = 1)

#define	novasvg_increment_reference(ob) (void)(ob && ++(ob)->ref_count)

#define	novasvg_destroy_reference(ob) (ob && --(ob)->ref_count == 0)

#define	novasvg_get_reference_count(ob) ((ob) ? (ob)->ref_count : 0)

Typedefs
typedef int	novasvg::render::ref_count_t

typedef struct novasvg::render::state	novasvg::render::state_t

Enumerations
enum	novasvg::render::paint_type_t { novasvg::render::NOVASVG_PAINT_TYPE_COLOR , novasvg::render::NOVASVG_PAINT_TYPE_GRADIENT , novasvg::render::NOVASVG_PAINT_TYPE_TEXTURE }

enum	novasvg::render::gradient_type_t { novasvg::render::NOVASVG_GRADIENT_TYPE_LINEAR , novasvg::render::NOVASVG_GRADIENT_TYPE_RADIAL }

Functions
void	novasvg::render::span_buffer_init (span_buffer_t *span_buffer)

void	novasvg::render::span_buffer_init_rect (span_buffer_t *span_buffer, int x, int y, int width, int height)

void	novasvg::render::span_buffer_reset (span_buffer_t *span_buffer)

void	novasvg::render::span_buffer_destroy (span_buffer_t *span_buffer)

void	novasvg::render::span_buffer_copy (span_buffer_t span_buffer, const span_buffer_t source)

bool	novasvg::render::span_buffer_contains (const span_buffer_t *span_buffer, float x, float y)

void	novasvg::render::span_buffer_extents (span_buffer_t span_buffer, rect_t extents)

void	novasvg::render::span_buffer_intersect (span_buffer_t span_buffer, const span_buffer_t a, const span_buffer_t *b)

void	novasvg::render::rasterize (span_buffer_t span_buffer, const path_t path, const matrix_t matrix, const rect_t clip_rect, const stroke_data_t *stroke_data, fill_rule_t winding)

NOVASVG_INLINE void	novasvg::render::blend (canvas_t canvas, const span_buffer_t span_buffer)

NOVASVG_INLINE void	novasvg::render::memfill32 (unsigned int *dest, int length, unsigned int value)

Macro Definition Documentation

◆ novasvg_destroy_reference

#define novasvg_destroy_reference ( ob ) (ob && --(ob)->ref_count == 0)

Definition at line 47 of file private.h.

#define novasvg_get_reference_count ( ob ) ((ob) ? (ob)->ref_count : 0)

Definition at line 48 of file private.h.

#define novasvg_increment_reference ( ob ) (void)(ob && ++(ob)->ref_count)

Definition at line 46 of file private.h.

#define novasvg_init_reference ( ob ) ((ob)->ref_count = 1)

Definition at line 45 of file private.h.

#define NOVASVG_PRIVATE_H

Definition at line 4 of file private.h.
