SVG renderer benchmark

novasvg against resvg, lunasvg, cairosvg, thorvg, nanosvg. Each of the 60 samples is rendered at its own aspect ratio, fit within 320×320px, and timed as the median of 5 runs.

60 samplesmedian of 5 runsgenerated 2026-10-15 02:17 UTC

At a glance

Chromium (ground truth) is the reference every other engine is checked against, not a competitor. Its render time includes full browser page-navigation overhead (one shared instance for the whole corpus, one render each, no median-of-N), so it is left out of the charts. RMSE is the root mean squared error against the ground-truth render, at the same pixel dimensions, over all 4 RGBA channels on the 0-255 scale. Squaring before the square root weights a handful of badly wrong pixels (a missing filter, a wrong fill, a shifted shape) far more than the routine anti-aliasing noise along every edge, so low single digits is essentially imperceptible and anything in the tens or higher usually means something structural differs.

Accuracy

Mean RMSE against the Chromium render. Lower is closer.

novasvg15.4
resvg19.2
lunasvg30.9
cairosvg46.0
nanosvg48.3
thorvg76.4

Speed

Average render time per sample. Lower is faster.

thorvg0.64 ms
lunasvg1.85 ms
nanosvg2.16 ms
novasvg2.28 ms
resvg3.38 ms
cairosvg42.92 ms

These charts and the table below are drawn from render_benchmark.json, which sits next to this page.

nanosvg is included as a lightweight baseline, not a fair fight with the other 5. It is a minimal path and gradient rasterizer with no CSS, no filters and no text layout, so its FAILs and blank renders on filter or text heavy samples below are expected scope, not bugs.

Engine versions

Engine	Version	Rendered OK	Avg time / sample	Total time
Chromium (ground truth)	Chromium 141.0.7390.37	60/60	84.34 ms	5060.28 ms
novasvg	0.10.0	60/60	2.28 ms	136.57 ms
resvg	0.45.1	60/60	3.38 ms	202.54 ms
lunasvg	3.5.0	60/60	1.85 ms	110.75 ms
cairosvg	2.9.1	60/60	42.92 ms	2575.47 ms
thorvg	1.0.0	60/60	0.64 ms	38.15 ms
nanosvg	git-master (no version macro upstream)	60/60	2.16 ms	129.54 ms

Rendered output

Same size (that sample's own aspect ratio, fit within 320×320px) from every engine, side by side, so visual differences (missing text, wrong fills, unapplied filters, ...) are easy to spot. Click any render to zoom in.

circle (320×320px)

plain shape

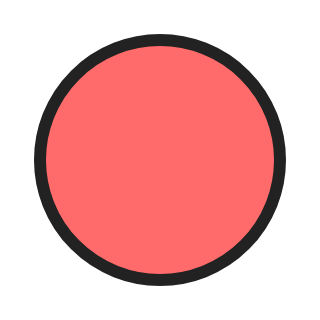

Chromium (ground truth) render of circle — **Chromium (ground truth)**140.72 ms
reference

novasvg render of circle — **novasvg**0.49 ms
RMSE 1.81

resvg render of circle — **resvg**0.90 ms
RMSE 1.38

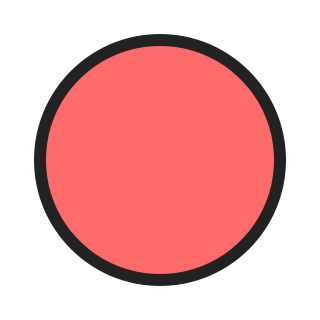

lunasvg render of circle — **lunasvg**0.50 ms
RMSE 1.81

cairosvg render of circle — **cairosvg**7.86 ms
RMSE 1.80

thorvg render of circle — **thorvg**0.43 ms
RMSE 1.62

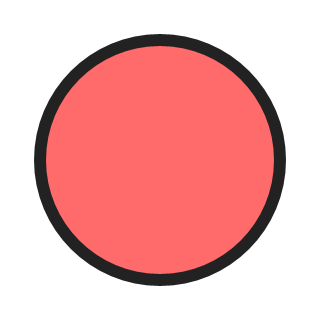

nanosvg render of circle — **nanosvg**1.74 ms
RMSE 2.39

rect (320×320px)

plain shape

Chromium (ground truth) render of rect — **Chromium (ground truth)**56.26 ms
reference

novasvg render of rect — **novasvg**0.21 ms
RMSE 0.00

resvg render of rect — **resvg**0.16 ms
RMSE 0.00

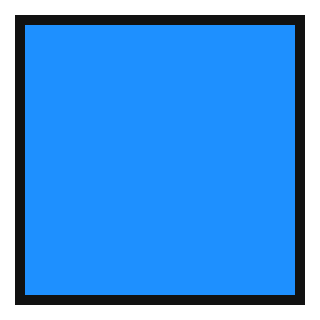

lunasvg render of rect — **lunasvg**0.08 ms
RMSE 0.00

cairosvg render of rect — **cairosvg**6.51 ms
RMSE 0.00

thorvg render of rect — **thorvg**0.16 ms
RMSE 0.00

nanosvg render of rect — **nanosvg**2.04 ms
RMSE 1.57

tiger (320×320px)

complex path-heavy vector art

Chromium (ground truth) render of tiger — **Chromium (ground truth)**103.47 ms
reference

novasvg render of tiger — **novasvg**11.68 ms
RMSE 5.96

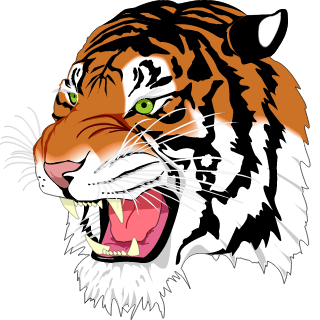

resvg render of tiger — **resvg**10.46 ms
RMSE 5.24

lunasvg render of tiger — **lunasvg**10.56 ms
RMSE 5.96

cairosvg render of tiger — **cairosvg**96.39 ms
RMSE 5.61

thorvg render of tiger — **thorvg**7.32 ms
RMSE 5.91

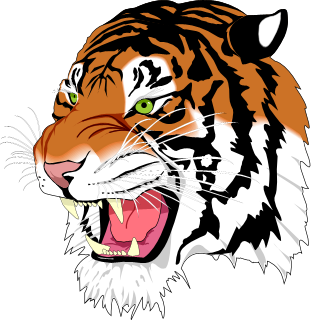

nanosvg render of tiger — **nanosvg**15.30 ms
RMSE 11.48

nova-logo (320×161px)

logo, mixed shapes/gradients

Chromium (ground truth)106.72 ms
reference

novasvg0.89 ms
RMSE 10.13

resvg1.53 ms
RMSE 8.40

lunasvg0.79 ms
RMSE 10.13

cairosvg13.88 ms
RMSE 9.22

thorvg0.68 ms
RMSE 9.03

nanosvg2.40 ms
RMSE 25.05

clip-mask (320×160px)

clip-path + luminance mask

Chromium (ground truth) render of clip-mask — **Chromium (ground truth)**71.98 ms
reference

novasvg render of clip-mask — **novasvg**0.53 ms
RMSE 4.35

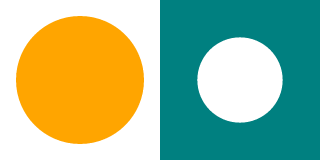

resvg render of clip-mask — **resvg**1.50 ms
RMSE 6.26

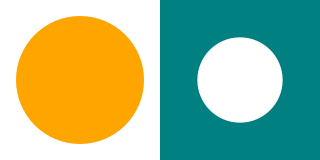

lunasvg render of clip-mask — **lunasvg**0.49 ms
RMSE 4.35

cairosvg render of clip-mask — **cairosvg**5.15 ms
RMSE 97.46

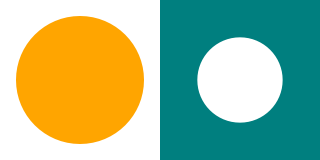

thorvg render of clip-mask — **thorvg**0.38 ms
RMSE 4.17

nanosvg render of clip-mask — **nanosvg**1.39 ms
RMSE 118.00

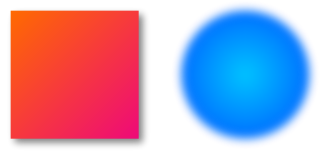

gradient-filter (320×160px)

gradients + SVG filter

Chromium (ground truth) render of gradient-filter — **Chromium (ground truth)**87.61 ms
reference

novasvg render of gradient-filter — **novasvg**2.84 ms
RMSE 8.17

resvg render of gradient-filter — **resvg**23.26 ms
RMSE 13.36

lunasvg render of gradient-filter — **lunasvg**0.18 ms
RMSE 42.82

cairosvg render of gradient-filter — **cairosvg**7.31 ms
RMSE 42.84

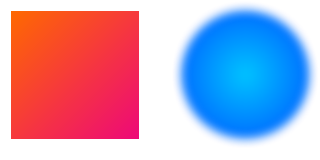

thorvg render of gradient-filter — **thorvg**0.59 ms
RMSE 15.63

nanosvg render of gradient-filter — **nanosvg**1.50 ms
RMSE 49.63

filter-primitives (320×120px)

chained filter primitives (blur/offset/flood/composite)

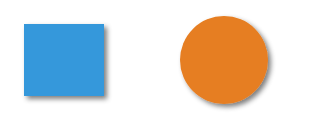

Chromium (ground truth) render of filter-primitives — **Chromium (ground truth)**82.73 ms
reference

novasvg render of filter-primitives — **novasvg**2.03 ms
RMSE 2.41

resvg render of filter-primitives — **resvg**14.32 ms
RMSE 2.07

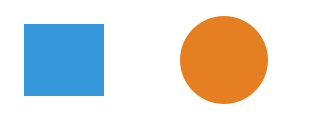

lunasvg render of filter-primitives — **lunasvg**0.04 ms
RMSE 9.07

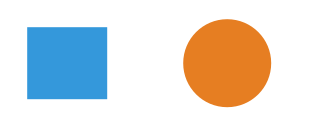

cairosvg render of filter-primitives — **cairosvg**6.43 ms
RMSE 36.92

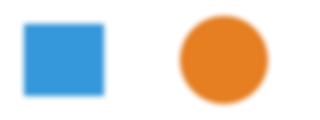

thorvg render of filter-primitives — **thorvg**0.31 ms
RMSE 38.92

nanosvg render of filter-primitives — **nanosvg**0.44 ms
RMSE 17.48

css-use-symbol (320×160px)

CSS transform + <use>/<symbol>

Chromium (ground truth) render of css-use-symbol — **Chromium (ground truth)**64.05 ms
reference

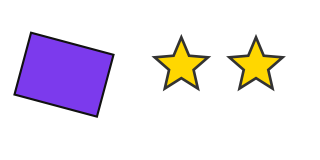

novasvg render of css-use-symbol — **novasvg**0.31 ms
RMSE 1.54

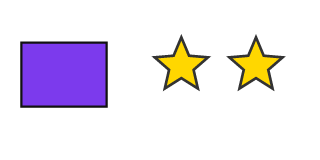

resvg render of css-use-symbol — **resvg**0.63 ms
RMSE 26.32

lunasvg render of css-use-symbol — **lunasvg**0.23 ms
RMSE 26.36

cairosvg render of css-use-symbol — **cairosvg**10.25 ms
RMSE 26.35

thorvg render of css-use-symbol — **thorvg**0.14 ms
RMSE 26.33

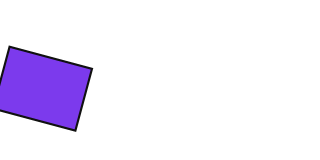

nanosvg render of css-use-symbol — **nanosvg**0.38 ms
RMSE 69.54

base64-image (320×160px)

embedded raster <image>

Chromium (ground truth) render of base64-image — **Chromium (ground truth)**81.56 ms
reference

novasvg render of base64-image — **novasvg**0.84 ms
RMSE 24.61

resvg render of base64-image — **resvg**2.43 ms
RMSE 18.98

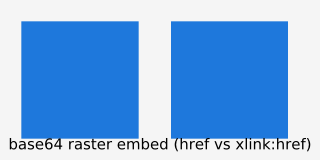

lunasvg render of base64-image — **lunasvg**0.91 ms
RMSE 24.67

cairosvg render of base64-image — **cairosvg**5.83 ms
RMSE 28.86

thorvg render of base64-image — **thorvg**0.05 ms
RMSE 93.30

nanosvg render of base64-image — **nanosvg**0.80 ms
RMSE 93.30

mermaid-flowchart (273×320px)

<foreignObject> text, CSS classDef fills

Chromium (ground truth) render of mermaid-flowchart — **Chromium (ground truth)**106.59 ms
reference

novasvg render of mermaid-flowchart — **novasvg**1.35 ms
RMSE 11.72

resvg render of mermaid-flowchart — **resvg**1.65 ms
RMSE 23.90

lunasvg render of mermaid-flowchart — **lunasvg**0.87 ms
RMSE 25.25

cairosvg render of mermaid-flowchart — **cairosvg**34.92 ms
RMSE 25.32

thorvg render of mermaid-flowchart — **thorvg**0.40 ms
RMSE 39.77

nanosvg render of mermaid-flowchart — **nanosvg**1.57 ms
RMSE 31.11

embedded-font (320×80px)

plain <text>, @font-face embedded TTF/OTF

Chromium (ground truth) render of embedded-font — **Chromium (ground truth)**124.44 ms
reference

novasvg render of embedded-font — **novasvg**4.10 ms
RMSE 37.41

resvg render of embedded-font — **resvg**3.52 ms
RMSE 39.28

lunasvg render of embedded-font — **lunasvg**3.98 ms
RMSE 44.29

cairosvg render of embedded-font — **cairosvg**180.91 ms
RMSE 45.96

thorvg render of embedded-font — **thorvg**0.26 ms
RMSE 39.28

nanosvg render of embedded-font — **nanosvg**1.20 ms
RMSE 39.28

embedded-font-distinctive (320×112px)

embedded monospace font vs. an unresolvable family, side by side

Chromium (ground truth) render of embedded-font-distinctive — **Chromium (ground truth)**100.67 ms
reference

novasvg render of embedded-font-distinctive — **novasvg**6.05 ms
RMSE 55.83

resvg render of embedded-font-distinctive — **resvg**2.92 ms
RMSE 48.42

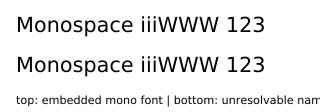

lunasvg render of embedded-font-distinctive — **lunasvg**4.13 ms
RMSE 58.28

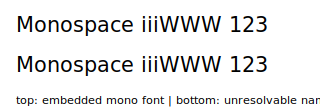

cairosvg render of embedded-font-distinctive — **cairosvg**145.73 ms
RMSE 58.52

thorvg render of embedded-font-distinctive — **thorvg**0.21 ms
RMSE 48.42

nanosvg render of embedded-font-distinctive — **nanosvg**1.40 ms
RMSE 48.42

mermaid-01-venn (320×180px)

mermaid venn-beta diagram (mmdc render)

Chromium (ground truth) render of mermaid-01-venn — **Chromium (ground truth)**69.69 ms
reference

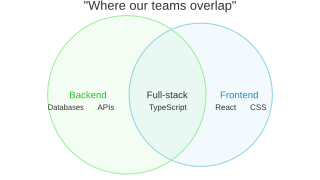

novasvg render of mermaid-01-venn — **novasvg**1.92 ms
RMSE 6.99

resvg render of mermaid-01-venn — **resvg**1.11 ms
RMSE 16.28

lunasvg render of mermaid-01-venn — **lunasvg**0.97 ms
RMSE 198.51

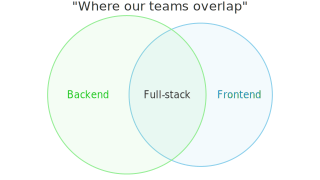

cairosvg render of mermaid-01-venn — **cairosvg**20.57 ms
RMSE 198.39

thorvg render of mermaid-01-venn — **thorvg**0.44 ms
RMSE 198.80

nanosvg render of mermaid-01-venn — **nanosvg**1.35 ms
RMSE 207.54

mermaid-02-flowchart (320×129px)

mermaid graph diagram (mmdc render)

Chromium (ground truth) render of mermaid-02-flowchart — **Chromium (ground truth)**65.44 ms
reference

novasvg render of mermaid-02-flowchart — **novasvg**3.56 ms
RMSE 4.99

resvg render of mermaid-02-flowchart — **resvg**2.53 ms
RMSE 8.57

lunasvg render of mermaid-02-flowchart — **lunasvg**1.34 ms
RMSE 201.84

cairosvg render of mermaid-02-flowchart — **cairosvg**41.52 ms
RMSE 202.10

thorvg render of mermaid-02-flowchart — **thorvg**0.60 ms
RMSE 231.28

nanosvg render of mermaid-02-flowchart — **nanosvg**2.02 ms
RMSE 198.78

mermaid-03-block (320×154px)

mermaid block diagram (mmdc render)

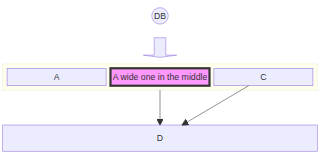

Chromium (ground truth) render of mermaid-03-block — **Chromium (ground truth)**82.94 ms
reference

novasvg render of mermaid-03-block — **novasvg**1.33 ms
RMSE 3.77

resvg render of mermaid-03-block — **resvg**1.22 ms
RMSE 8.48

lunasvg render of mermaid-03-block — **lunasvg**0.89 ms
RMSE 203.35

cairosvg render of mermaid-03-block — **cairosvg**23.69 ms
RMSE 203.35

thorvg render of mermaid-03-block — **thorvg**0.26 ms
RMSE 235.74

nanosvg render of mermaid-03-block — **nanosvg**1.18 ms
RMSE 201.19

mermaid-04-simple-flowchart (315×320px)

mermaid graph diagram (mmdc render)

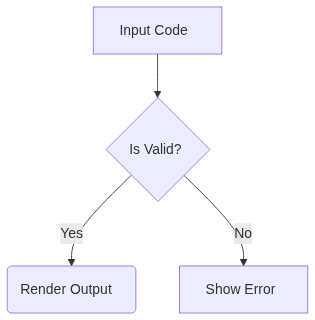

Chromium (ground truth) render of mermaid-04-simple-flowchart — **Chromium (ground truth)**72.70 ms
reference

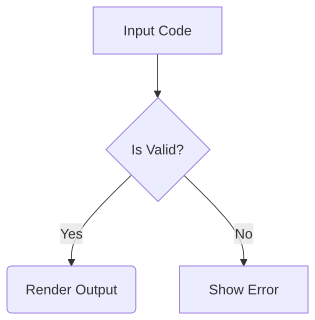

novasvg render of mermaid-04-simple-flowchart — **novasvg**1.87 ms
RMSE 17.03

resvg render of mermaid-04-simple-flowchart — **resvg**1.96 ms
RMSE 24.29

lunasvg render of mermaid-04-simple-flowchart — **lunasvg**1.14 ms
RMSE 24.59

cairosvg render of mermaid-04-simple-flowchart — **cairosvg**31.52 ms
RMSE 24.64

thorvg render of mermaid-04-simple-flowchart — **thorvg**0.33 ms
RMSE 103.14

nanosvg render of mermaid-04-simple-flowchart — **nanosvg**1.76 ms
RMSE 29.35

mermaid-05-data-flow (320×57px)

mermaid graph diagram (mmdc render)

Chromium (ground truth) render of mermaid-05-data-flow — **Chromium (ground truth)**76.89 ms
reference

novasvg render of mermaid-05-data-flow — **novasvg**1.92 ms
RMSE 20.95

resvg render of mermaid-05-data-flow — **resvg**2.34 ms
RMSE 28.19

lunasvg render of mermaid-05-data-flow — **lunasvg**2.48 ms
RMSE 19.02

cairosvg render of mermaid-05-data-flow — **cairosvg**34.80 ms
RMSE 19.42

thorvg render of mermaid-05-data-flow — **thorvg**0.71 ms
RMSE 115.38

nanosvg render of mermaid-05-data-flow — **nanosvg**1.47 ms
RMSE 34.38

mermaid-06-simple-sequence (320×181px)

mermaid sequenceDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-06-simple-sequence — **Chromium (ground truth)**71.82 ms
reference

novasvg render of mermaid-06-simple-sequence — **novasvg**1.11 ms
RMSE 11.37

resvg render of mermaid-06-simple-sequence — **resvg**1.58 ms
RMSE 19.77

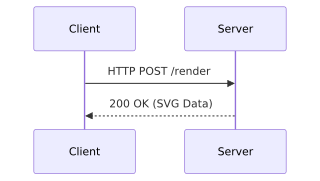

lunasvg render of mermaid-06-simple-sequence — **lunasvg**1.60 ms
RMSE 17.82

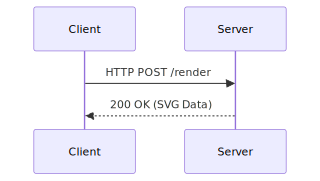

cairosvg render of mermaid-06-simple-sequence — **cairosvg**26.34 ms
RMSE 19.40

thorvg render of mermaid-06-simple-sequence — **thorvg**0.32 ms
RMSE 24.96

nanosvg render of mermaid-06-simple-sequence — **nanosvg**1.11 ms
RMSE 25.18

mermaid-07-simple-state (254×320px)

mermaid stateDiagram-v2 diagram (mmdc render)

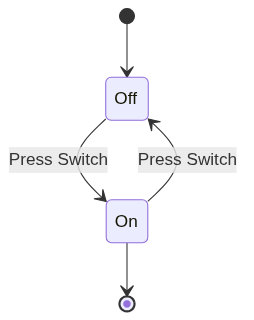

Chromium (ground truth) render of mermaid-07-simple-state — **Chromium (ground truth)**98.29 ms
reference

novasvg render of mermaid-07-simple-state — **novasvg**1.39 ms
RMSE 23.09

resvg render of mermaid-07-simple-state — **resvg**2.60 ms
RMSE 54.13

lunasvg render of mermaid-07-simple-state — **lunasvg**1.42 ms
RMSE 54.05

cairosvg render of mermaid-07-simple-state — **cairosvg**33.25 ms
RMSE 54.15

thorvg render of mermaid-07-simple-state — **thorvg**0.40 ms
RMSE 69.62

nanosvg render of mermaid-07-simple-state — **nanosvg**1.21 ms
RMSE 55.41

mermaid-08-simple-mindmap (320×245px)

mermaid mindmap diagram (mmdc render)

Chromium (ground truth) render of mermaid-08-simple-mindmap — **Chromium (ground truth)**85.49 ms
reference

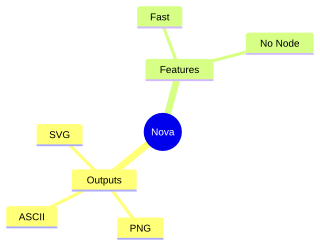

novasvg render of mermaid-08-simple-mindmap — **novasvg**1.40 ms
RMSE 14.06

resvg render of mermaid-08-simple-mindmap — **resvg**6.29 ms
RMSE 13.36

lunasvg render of mermaid-08-simple-mindmap — **lunasvg**1.80 ms
RMSE 14.68

cairosvg render of mermaid-08-simple-mindmap — **cairosvg**78.42 ms
RMSE 66.61

thorvg render of mermaid-08-simple-mindmap — **thorvg**0.49 ms
RMSE 68.43

nanosvg render of mermaid-08-simple-mindmap — **nanosvg**1.94 ms
RMSE 38.29

mermaid-09-complex-sequence (278×320px)

mermaid sequenceDiagram diagram (mmdc render)

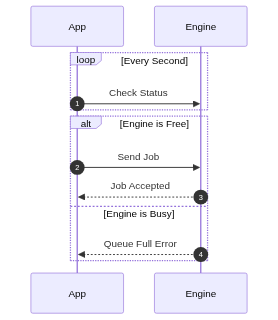

Chromium (ground truth) render of mermaid-09-complex-sequence — **Chromium (ground truth)**103.87 ms
reference

novasvg render of mermaid-09-complex-sequence — **novasvg**2.07 ms
RMSE 12.50

resvg render of mermaid-09-complex-sequence — **resvg**2.75 ms
RMSE 17.03

lunasvg render of mermaid-09-complex-sequence — **lunasvg**1.92 ms
RMSE 17.35

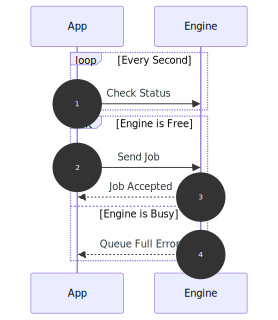

cairosvg render of mermaid-09-complex-sequence — **cairosvg**36.82 ms
RMSE 41.80

thorvg render of mermaid-09-complex-sequence — **thorvg**0.50 ms
RMSE 37.85

nanosvg render of mermaid-09-complex-sequence — **nanosvg**1.99 ms
RMSE 33.76

mermaid-10-complex-erd (110×320px)

mermaid erDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-10-complex-erd — **Chromium (ground truth)**92.41 ms
reference

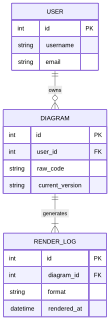

novasvg render of mermaid-10-complex-erd — **novasvg**2.18 ms
RMSE 23.99

resvg render of mermaid-10-complex-erd — **resvg**4.07 ms
RMSE 27.65

lunasvg render of mermaid-10-complex-erd — **lunasvg**1.17 ms
RMSE 29.44

cairosvg render of mermaid-10-complex-erd — **cairosvg**52.43 ms
RMSE 146.83

thorvg render of mermaid-10-complex-erd — **thorvg**0.89 ms
RMSE 31.97

nanosvg render of mermaid-10-complex-erd — **nanosvg**2.26 ms
RMSE 77.06

mermaid-11-flowchart-multiline-entities (164×320px)

mermaid graph diagram (mmdc render)

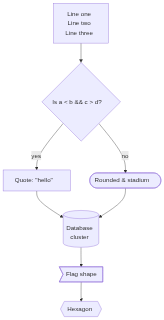

Chromium (ground truth) render of mermaid-11-flowchart-multiline-entities — **Chromium (ground truth)**82.37 ms
reference

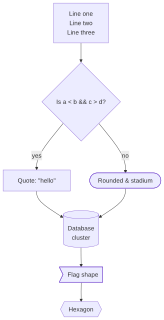

novasvg render of mermaid-11-flowchart-multiline-entities — **novasvg**2.56 ms
RMSE 14.34

resvg render of mermaid-11-flowchart-multiline-entities — **resvg**3.05 ms
RMSE 16.99

lunasvg render of mermaid-11-flowchart-multiline-entities — **lunasvg**1.91 ms
RMSE 18.26

cairosvg render of mermaid-11-flowchart-multiline-entities — **cairosvg**51.27 ms
RMSE 17.67

thorvg render of mermaid-11-flowchart-multiline-entities — **thorvg**0.88 ms
RMSE 86.42

nanosvg render of mermaid-11-flowchart-multiline-entities — **nanosvg**2.14 ms
RMSE 24.54

mermaid-12-flowchart-subgraphs (320×79px)

mermaid flowchart diagram (mmdc render)

Chromium (ground truth) render of mermaid-12-flowchart-subgraphs — **Chromium (ground truth)**85.18 ms
reference

novasvg render of mermaid-12-flowchart-subgraphs — **novasvg**1.22 ms
RMSE 16.44

resvg render of mermaid-12-flowchart-subgraphs — **resvg**1.82 ms
RMSE 16.18

lunasvg render of mermaid-12-flowchart-subgraphs — **lunasvg**0.75 ms
RMSE 44.03

cairosvg render of mermaid-12-flowchart-subgraphs — **cairosvg**37.98 ms
RMSE 11.72

thorvg render of mermaid-12-flowchart-subgraphs — **thorvg**0.35 ms
RMSE 149.67

nanosvg render of mermaid-12-flowchart-subgraphs — **nanosvg**1.10 ms
RMSE 34.25

mermaid-13-flowchart-long-label (188×320px)

mermaid graph diagram (mmdc render)

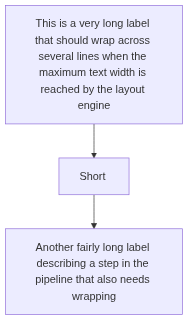

Chromium (ground truth) render of mermaid-13-flowchart-long-label — **Chromium (ground truth)**100.48 ms
reference

novasvg render of mermaid-13-flowchart-long-label — **novasvg**2.53 ms
RMSE 32.76

resvg render of mermaid-13-flowchart-long-label — **resvg**1.52 ms
RMSE 30.09

lunasvg render of mermaid-13-flowchart-long-label — **lunasvg**0.85 ms
RMSE 25.82

cairosvg render of mermaid-13-flowchart-long-label — **cairosvg**30.00 ms
RMSE 25.82

thorvg render of mermaid-13-flowchart-long-label — **thorvg**0.23 ms
RMSE 163.36

nanosvg render of mermaid-13-flowchart-long-label — **nanosvg**1.63 ms
RMSE 34.81

mermaid-14-class-diagram (222×320px)

mermaid classDiagram diagram (mmdc render)

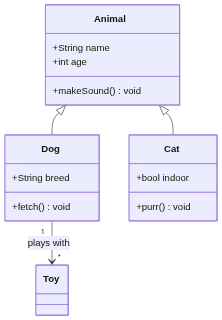

Chromium (ground truth) render of mermaid-14-class-diagram — **Chromium (ground truth)**87.11 ms
reference

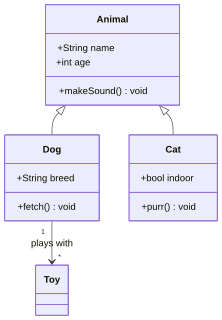

novasvg render of mermaid-14-class-diagram — **novasvg**1.90 ms
RMSE 29.14

resvg render of mermaid-14-class-diagram — **resvg**3.15 ms
RMSE 28.49

lunasvg render of mermaid-14-class-diagram — **lunasvg**1.68 ms
RMSE 29.46

cairosvg render of mermaid-14-class-diagram — **cairosvg**42.72 ms
RMSE 29.63

thorvg render of mermaid-14-class-diagram — **thorvg**0.51 ms
RMSE 30.89

nanosvg render of mermaid-14-class-diagram — **nanosvg**1.65 ms
RMSE 34.60

mermaid-15-pie-chart (320×231px)

mermaid pie diagram (mmdc render)

Chromium (ground truth) render of mermaid-15-pie-chart — **Chromium (ground truth)**79.23 ms
reference

novasvg render of mermaid-15-pie-chart — **novasvg**1.38 ms
RMSE 3.65

resvg render of mermaid-15-pie-chart — **resvg**1.86 ms
RMSE 11.41

lunasvg render of mermaid-15-pie-chart — **lunasvg**1.70 ms
RMSE 10.87

cairosvg render of mermaid-15-pie-chart — **cairosvg**21.07 ms
RMSE 50.31

thorvg render of mermaid-15-pie-chart — **thorvg**0.30 ms
RMSE 29.01

nanosvg render of mermaid-15-pie-chart — **nanosvg**1.69 ms
RMSE 28.48

mermaid-16-gantt (320×63px)

mermaid gantt diagram (mmdc render)

Chromium (ground truth) render of mermaid-16-gantt — **Chromium (ground truth)**80.68 ms
reference

novasvg render of mermaid-16-gantt — **novasvg**1.57 ms
RMSE 19.85

resvg render of mermaid-16-gantt — **resvg**2.12 ms
RMSE 22.24

lunasvg render of mermaid-16-gantt — **lunasvg**2.22 ms
RMSE 20.20

cairosvg render of mermaid-16-gantt — **cairosvg**57.24 ms
RMSE 20.20

thorvg render of mermaid-16-gantt — **thorvg**0.35 ms
RMSE 143.40

nanosvg render of mermaid-16-gantt — **nanosvg**0.84 ms
RMSE 38.61

mermaid-17-journey (320×157px)

mermaid journey diagram (mmdc render)

Chromium (ground truth) render of mermaid-17-journey — **Chromium (ground truth)**69.45 ms
reference

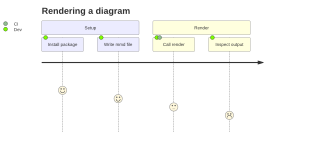

novasvg render of mermaid-17-journey — **novasvg**4.67 ms
RMSE 55.06

resvg render of mermaid-17-journey — **resvg**1.83 ms
RMSE 39.94

lunasvg render of mermaid-17-journey — **lunasvg**2.78 ms
RMSE 55.15

cairosvg render of mermaid-17-journey — **cairosvg**28.54 ms
RMSE 13.83

thorvg render of mermaid-17-journey — **thorvg**0.63 ms
RMSE 60.34

nanosvg render of mermaid-17-journey — **nanosvg**2.44 ms
RMSE 22.26

mermaid-18-timeline (320×172px)

mermaid timeline diagram (mmdc render)

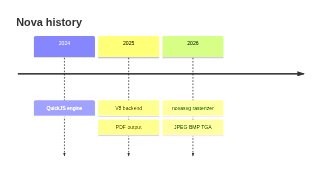

Chromium (ground truth) render of mermaid-18-timeline — **Chromium (ground truth)**85.41 ms
reference

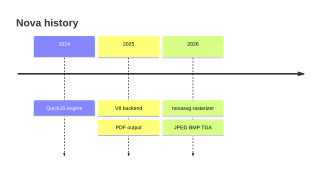

novasvg render of mermaid-18-timeline — **novasvg**2.45 ms
RMSE 14.25

resvg render of mermaid-18-timeline — **resvg**3.50 ms
RMSE 10.59

lunasvg render of mermaid-18-timeline — **lunasvg**1.81 ms
RMSE 15.10

cairosvg render of mermaid-18-timeline — **cairosvg**57.34 ms
RMSE 77.11

thorvg render of mermaid-18-timeline — **thorvg**0.38 ms
RMSE 77.58

nanosvg render of mermaid-18-timeline — **nanosvg**1.08 ms
RMSE 40.81

mermaid-19-sequence-notes-activation (320×227px)

mermaid sequenceDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-19-sequence-notes-activation — **Chromium (ground truth)**81.12 ms
reference

novasvg render of mermaid-19-sequence-notes-activation — **novasvg**1.63 ms
RMSE 10.75

resvg render of mermaid-19-sequence-notes-activation — **resvg**1.85 ms
RMSE 14.57

lunasvg render of mermaid-19-sequence-notes-activation — **lunasvg**2.25 ms
RMSE 15.29

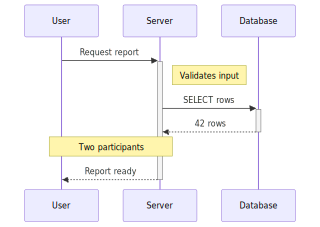

cairosvg render of mermaid-19-sequence-notes-activation — **cairosvg**34.15 ms
RMSE 16.91

thorvg render of mermaid-19-sequence-notes-activation — **thorvg**0.46 ms
RMSE 21.89

nanosvg render of mermaid-19-sequence-notes-activation — **nanosvg**1.59 ms
RMSE 27.01

mermaid-20-state-composite (56×320px)

mermaid stateDiagram-v2 diagram (mmdc render)

Chromium (ground truth) render of mermaid-20-state-composite — **Chromium (ground truth)**64.48 ms
reference

novasvg render of mermaid-20-state-composite — **novasvg**2.11 ms
RMSE 17.88

resvg render of mermaid-20-state-composite — **resvg**2.85 ms
RMSE 30.51

lunasvg render of mermaid-20-state-composite — **lunasvg**2.47 ms
RMSE 30.31

cairosvg render of mermaid-20-state-composite — **cairosvg**44.84 ms
RMSE 30.25

thorvg render of mermaid-20-state-composite — **thorvg**0.69 ms
RMSE 164.88

nanosvg render of mermaid-20-state-composite — **nanosvg**2.05 ms
RMSE 44.19

mermaid-21-flowchart-shapes-styles (74×320px)

mermaid flowchart diagram (mmdc render)

Chromium (ground truth) render of mermaid-21-flowchart-shapes-styles — **Chromium (ground truth)**68.85 ms
reference

novasvg render of mermaid-21-flowchart-shapes-styles — **novasvg**4.20 ms
RMSE 19.80

resvg render of mermaid-21-flowchart-shapes-styles — **resvg**3.62 ms
RMSE 23.54

lunasvg render of mermaid-21-flowchart-shapes-styles — **lunasvg**3.97 ms
RMSE 42.16

cairosvg render of mermaid-21-flowchart-shapes-styles — **cairosvg**61.17 ms
RMSE 23.74

thorvg render of mermaid-21-flowchart-shapes-styles — **thorvg**1.11 ms
RMSE 66.63

nanosvg render of mermaid-21-flowchart-shapes-styles — **nanosvg**2.78 ms
RMSE 35.80

mermaid-22-gitgraph (320×166px)

mermaid gitGraph diagram (mmdc render)

Chromium (ground truth) render of mermaid-22-gitgraph — **Chromium (ground truth)**83.52 ms
reference

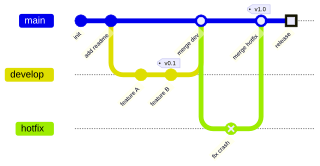

novasvg render of mermaid-22-gitgraph — **novasvg**2.08 ms
RMSE 11.62

resvg render of mermaid-22-gitgraph — **resvg**3.17 ms
RMSE 18.15

lunasvg render of mermaid-22-gitgraph — **lunasvg**2.12 ms
RMSE 16.51

cairosvg render of mermaid-22-gitgraph — **cairosvg**38.52 ms
RMSE 46.90

thorvg render of mermaid-22-gitgraph — **thorvg**0.40 ms
RMSE 70.72

nanosvg render of mermaid-22-gitgraph — **nanosvg**2.18 ms
RMSE 53.80

mermaid-23-quadrant-chart (320×320px)

mermaid quadrantChart diagram (mmdc render)

Chromium (ground truth) render of mermaid-23-quadrant-chart — **Chromium (ground truth)**86.11 ms
reference

novasvg render of mermaid-23-quadrant-chart — **novasvg**2.32 ms
RMSE 11.10

resvg render of mermaid-23-quadrant-chart — **resvg**1.32 ms
RMSE 19.78

lunasvg render of mermaid-23-quadrant-chart — **lunasvg**1.80 ms
RMSE 21.32

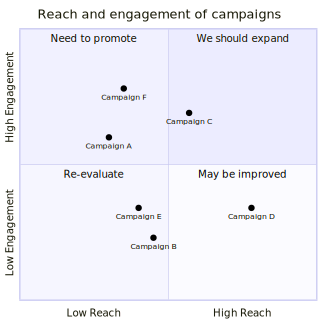

cairosvg render of mermaid-23-quadrant-chart — **cairosvg**30.84 ms
RMSE 24.45

thorvg render of mermaid-23-quadrant-chart — **thorvg**0.37 ms
RMSE 19.80

nanosvg render of mermaid-23-quadrant-chart — **nanosvg**1.99 ms
RMSE 27.93

mermaid-24-xychart (320×229px)

mermaid xychart-beta diagram (mmdc render)

Chromium (ground truth) render of mermaid-24-xychart — **Chromium (ground truth)**96.67 ms
reference

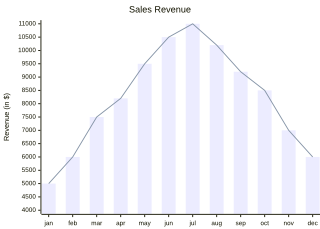

novasvg render of mermaid-24-xychart — **novasvg**1.33 ms
RMSE 8.54

resvg render of mermaid-24-xychart — **resvg**1.55 ms
RMSE 15.18

lunasvg render of mermaid-24-xychart — **lunasvg**1.13 ms
RMSE 13.86

cairosvg render of mermaid-24-xychart — **cairosvg**34.65 ms
RMSE 12.49

thorvg render of mermaid-24-xychart — **thorvg**0.42 ms
RMSE 15.31

nanosvg render of mermaid-24-xychart — **nanosvg**2.15 ms
RMSE 15.58

mermaid-25-sankey (320×216px)

mermaid sankey-beta diagram (mmdc render)

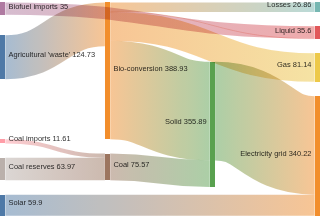

Chromium (ground truth) render of mermaid-25-sankey — **Chromium (ground truth)**97.26 ms
reference

novasvg render of mermaid-25-sankey — **novasvg**5.44 ms
RMSE 12.37

resvg render of mermaid-25-sankey — **resvg**3.31 ms
RMSE 16.30

lunasvg render of mermaid-25-sankey — **lunasvg**1.77 ms
RMSE 15.62

cairosvg render of mermaid-25-sankey — **cairosvg**34.33 ms
RMSE 12.93

thorvg render of mermaid-25-sankey — **thorvg**2.09 ms
RMSE 73.44

nanosvg render of mermaid-25-sankey — **nanosvg**2.08 ms
RMSE 57.63

mermaid-26-block (320×276px)

mermaid block-beta diagram (mmdc render)

Chromium (ground truth) render of mermaid-26-block — **Chromium (ground truth)**91.17 ms
reference

novasvg render of mermaid-26-block — **novasvg**1.63 ms
RMSE 21.34

resvg render of mermaid-26-block — **resvg**2.15 ms
RMSE 18.26

lunasvg render of mermaid-26-block — **lunasvg**0.94 ms
RMSE 19.76

cairosvg render of mermaid-26-block — **cairosvg**27.92 ms
RMSE 19.76

thorvg render of mermaid-26-block — **thorvg**0.34 ms
RMSE 161.15

nanosvg render of mermaid-26-block — **nanosvg**3.05 ms
RMSE 31.50

mermaid-27-c4-context (176×320px)

mermaid C4Context diagram (mmdc render)

Chromium (ground truth) render of mermaid-27-c4-context — **Chromium (ground truth)**113.54 ms
reference

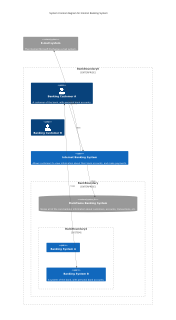

novasvg render of mermaid-27-c4-context — **novasvg**4.01 ms
RMSE 13.20

resvg render of mermaid-27-c4-context — **resvg**2.06 ms
RMSE 21.15

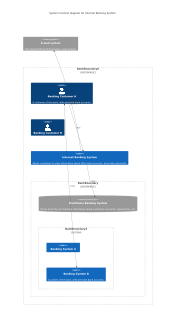

lunasvg render of mermaid-27-c4-context — **lunasvg**3.14 ms
RMSE 13.25

cairosvg render of mermaid-27-c4-context — **cairosvg**54.32 ms
RMSE 13.43

thorvg render of mermaid-27-c4-context — **thorvg**0.98 ms
RMSE 13.48

nanosvg render of mermaid-27-c4-context — **nanosvg**2.30 ms
RMSE 18.10

mermaid-28-requirement (215×320px)

mermaid requirementDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-28-requirement — **Chromium (ground truth)**86.84 ms
reference

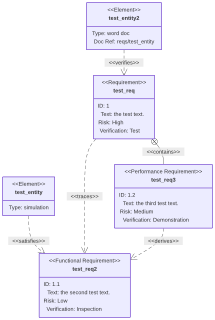

novasvg render of mermaid-28-requirement — **novasvg**2.57 ms
RMSE 24.92

resvg render of mermaid-28-requirement — **resvg**2.25 ms
RMSE 33.38

lunasvg render of mermaid-28-requirement — **lunasvg**0.75 ms
RMSE 34.99

cairosvg render of mermaid-28-requirement — **cairosvg**36.85 ms
RMSE 34.46

thorvg render of mermaid-28-requirement — **thorvg**0.47 ms
RMSE 35.91

nanosvg render of mermaid-28-requirement — **nanosvg**1.59 ms
RMSE 37.47

mermaid-29-kanban (320×81px)

mermaid kanban diagram (mmdc render)

Chromium (ground truth) render of mermaid-29-kanban — **Chromium (ground truth)**76.86 ms
reference

novasvg render of mermaid-29-kanban — **novasvg**3.75 ms
RMSE 29.34

resvg render of mermaid-29-kanban — **resvg**5.91 ms
RMSE 24.67

lunasvg render of mermaid-29-kanban — **lunasvg**1.49 ms
RMSE 28.69

cairosvg render of mermaid-29-kanban — **cairosvg**82.93 ms
RMSE 77.71

thorvg render of mermaid-29-kanban — **thorvg**0.42 ms
RMSE 151.54

nanosvg render of mermaid-29-kanban — **nanosvg**3.07 ms
RMSE 44.39

mermaid-30-architecture (309×320px)

mermaid architecture-beta diagram (mmdc render)

Chromium (ground truth) render of mermaid-30-architecture — **Chromium (ground truth)**69.65 ms
reference

novasvg render of mermaid-30-architecture — **novasvg**2.34 ms
RMSE 16.31

resvg render of mermaid-30-architecture — **resvg**2.59 ms
RMSE 8.60

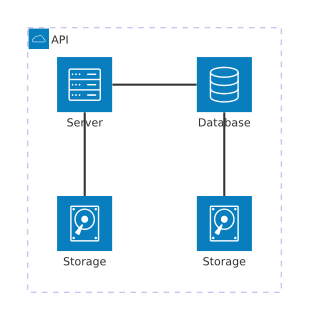

lunasvg render of mermaid-30-architecture — **lunasvg**2.04 ms
RMSE 17.57

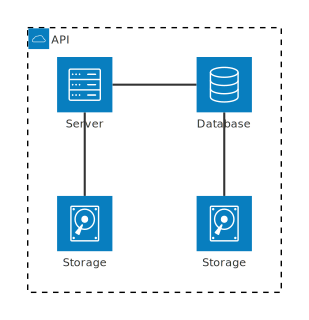

cairosvg render of mermaid-30-architecture — **cairosvg**37.12 ms
RMSE 22.85

thorvg render of mermaid-30-architecture — **thorvg**0.82 ms
RMSE 106.80

nanosvg render of mermaid-30-architecture — **nanosvg**3.01 ms
RMSE 69.34

mermaid-31-packet (320×132px)

mermaid packet-beta diagram (mmdc render)

Chromium (ground truth) render of mermaid-31-packet — **Chromium (ground truth)**64.68 ms
reference

novasvg render of mermaid-31-packet — **novasvg**1.55 ms
RMSE 5.35

resvg render of mermaid-31-packet — **resvg**1.08 ms
RMSE 12.94

lunasvg render of mermaid-31-packet — **lunasvg**1.15 ms
RMSE 7.69

cairosvg render of mermaid-31-packet — **cairosvg**33.84 ms
RMSE 7.26

thorvg render of mermaid-31-packet — **thorvg**0.29 ms
RMSE 155.08

nanosvg render of mermaid-31-packet — **nanosvg**1.15 ms
RMSE 38.15

mermaid-32-radar (320×320px)

mermaid radar-beta diagram (mmdc render)

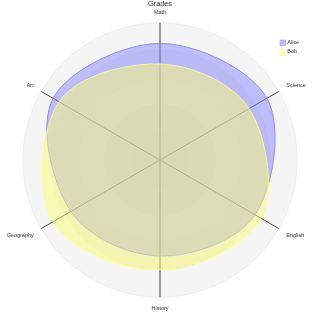

Chromium (ground truth) render of mermaid-32-radar — **Chromium (ground truth)**82.13 ms
reference

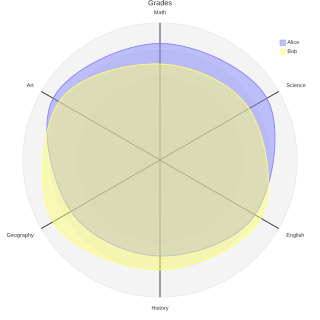

novasvg render of mermaid-32-radar — **novasvg**2.25 ms
RMSE 7.41

resvg render of mermaid-32-radar — **resvg**4.27 ms
RMSE 7.41

lunasvg render of mermaid-32-radar — **lunasvg**2.15 ms
RMSE 8.06

cairosvg render of mermaid-32-radar — **cairosvg**30.35 ms
RMSE 114.97

thorvg render of mermaid-32-radar — **thorvg**0.59 ms
RMSE 142.58

nanosvg render of mermaid-32-radar — **nanosvg**6.86 ms
RMSE 39.40

mermaid-33-treemap (320×119px)

mermaid treemap-beta diagram (mmdc render)

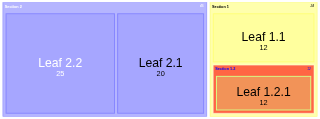

Chromium (ground truth) render of mermaid-33-treemap — **Chromium (ground truth)**98.39 ms
reference

novasvg render of mermaid-33-treemap — **novasvg**0.97 ms
RMSE 7.21

resvg render of mermaid-33-treemap — **resvg**1.52 ms
RMSE 16.29

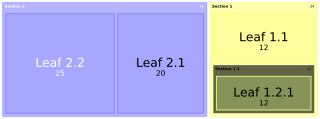

lunasvg render of mermaid-33-treemap — **lunasvg**0.77 ms
RMSE 29.10

cairosvg render of mermaid-33-treemap — **cairosvg**24.49 ms
RMSE 159.09

thorvg render of mermaid-33-treemap — **thorvg**0.37 ms
RMSE 16.70

nanosvg render of mermaid-33-treemap — **nanosvg**3.12 ms
RMSE 145.85

mermaid-34-venn (320×180px)

mermaid venn-beta diagram (mmdc render)

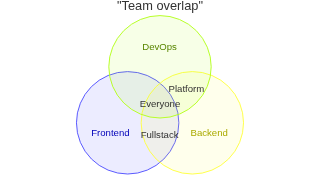

Chromium (ground truth) render of mermaid-34-venn — **Chromium (ground truth)**84.88 ms
reference

novasvg render of mermaid-34-venn — **novasvg**1.08 ms
RMSE 11.15

resvg render of mermaid-34-venn — **resvg**1.38 ms
RMSE 15.62

lunasvg render of mermaid-34-venn — **lunasvg**0.93 ms
RMSE 17.41

cairosvg render of mermaid-34-venn — **cairosvg**23.73 ms
RMSE 19.94

thorvg render of mermaid-34-venn — **thorvg**0.44 ms
RMSE 17.41

nanosvg render of mermaid-34-venn — **nanosvg**1.98 ms
RMSE 22.14

mermaid-35-ishikawa (277×320px)

mermaid ishikawa-beta diagram (mmdc render)

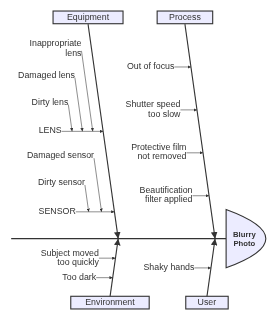

Chromium (ground truth) render of mermaid-35-ishikawa — **Chromium (ground truth)**89.25 ms
reference

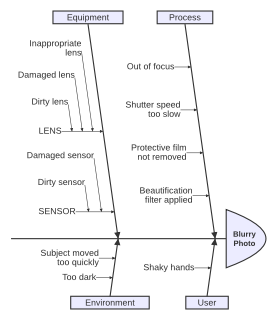

novasvg render of mermaid-35-ishikawa — **novasvg**2.03 ms
RMSE 9.95

resvg render of mermaid-35-ishikawa — **resvg**1.99 ms
RMSE 18.38

lunasvg render of mermaid-35-ishikawa — **lunasvg**1.77 ms
RMSE 18.08

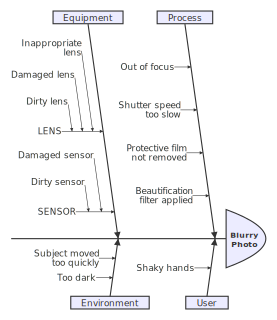

cairosvg render of mermaid-35-ishikawa — **cairosvg**46.67 ms
RMSE 21.54

thorvg render of mermaid-35-ishikawa — **thorvg**0.38 ms
RMSE 48.69

nanosvg render of mermaid-35-ishikawa — **nanosvg**1.85 ms
RMSE 20.82

mermaid-36-wardley (320×233px)

mermaid wardley-beta diagram (mmdc render)

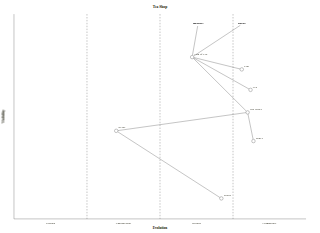

Chromium (ground truth) render of mermaid-36-wardley — **Chromium (ground truth)**116.71 ms
reference

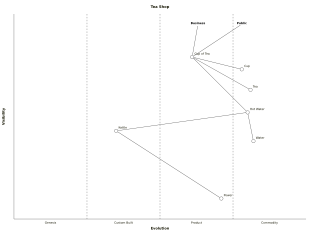

novasvg render of mermaid-36-wardley — **novasvg**1.16 ms
RMSE 5.19

resvg render of mermaid-36-wardley — **resvg**1.09 ms
RMSE 4.77

lunasvg render of mermaid-36-wardley — **lunasvg**0.95 ms
RMSE 5.20

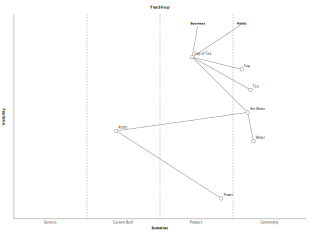

cairosvg render of mermaid-36-wardley — **cairosvg**29.87 ms
RMSE 5.25

thorvg render of mermaid-36-wardley — **thorvg**0.53 ms
RMSE 4.97

nanosvg render of mermaid-36-wardley — **nanosvg**3.17 ms
RMSE 5.65

mermaid-37-state-fork-choice (145×320px)

mermaid stateDiagram-v2 diagram (mmdc render)

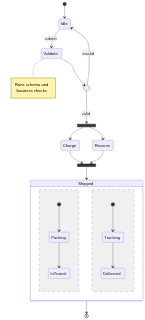

Chromium (ground truth) render of mermaid-37-state-fork-choice — **Chromium (ground truth)**78.51 ms
reference

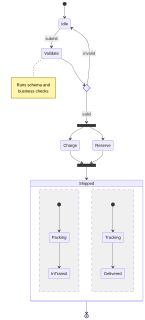

novasvg render of mermaid-37-state-fork-choice — **novasvg**2.58 ms
RMSE 13.23

resvg render of mermaid-37-state-fork-choice — **resvg**3.63 ms
RMSE 17.19

lunasvg render of mermaid-37-state-fork-choice — **lunasvg**2.49 ms
RMSE 18.98

cairosvg render of mermaid-37-state-fork-choice — **cairosvg**67.28 ms
RMSE 19.08

thorvg render of mermaid-37-state-fork-choice — **thorvg**0.83 ms
RMSE 129.16

nanosvg render of mermaid-37-state-fork-choice — **nanosvg**2.87 ms
RMSE 23.99

mermaid-38-sequence-control (197×320px)

mermaid sequenceDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-38-sequence-control — **Chromium (ground truth)**82.18 ms
reference

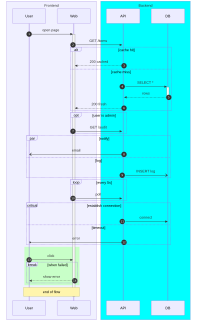

novasvg render of mermaid-38-sequence-control — **novasvg**4.09 ms
RMSE 17.39

resvg render of mermaid-38-sequence-control — **resvg**4.82 ms
RMSE 20.54

lunasvg render of mermaid-38-sequence-control — **lunasvg**5.19 ms
RMSE 17.80

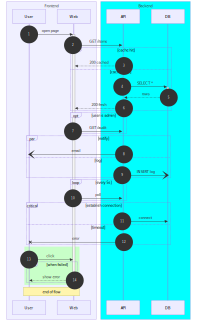

cairosvg render of mermaid-38-sequence-control — **cairosvg**70.86 ms
RMSE 37.09

thorvg render of mermaid-38-sequence-control — **thorvg**0.94 ms
RMSE 35.95

nanosvg render of mermaid-38-sequence-control — **nanosvg**4.82 ms
RMSE 73.36

mermaid-39-gantt-advanced (320×93px)

mermaid gantt diagram (mmdc render)

Chromium (ground truth) render of mermaid-39-gantt-advanced — **Chromium (ground truth)**66.61 ms
reference

novasvg render of mermaid-39-gantt-advanced — **novasvg**1.89 ms
RMSE 21.93

resvg render of mermaid-39-gantt-advanced — **resvg**2.65 ms
RMSE 27.09

lunasvg render of mermaid-39-gantt-advanced — **lunasvg**2.74 ms
RMSE 21.33

cairosvg render of mermaid-39-gantt-advanced — **cairosvg**46.18 ms
RMSE 20.95

thorvg render of mermaid-39-gantt-advanced — **thorvg**0.48 ms
RMSE 162.56

nanosvg render of mermaid-39-gantt-advanced — **nanosvg**1.42 ms
RMSE 43.48

mermaid-40-erd-relations (320×245px)

mermaid erDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-40-erd-relations — **Chromium (ground truth)**72.64 ms
reference

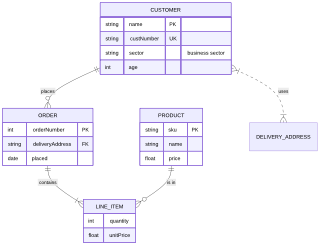

novasvg render of mermaid-40-erd-relations — **novasvg**2.95 ms
RMSE 13.27

resvg render of mermaid-40-erd-relations — **resvg**4.41 ms
RMSE 18.22

lunasvg render of mermaid-40-erd-relations — **lunasvg**3.16 ms
RMSE 18.95

cairosvg render of mermaid-40-erd-relations — **cairosvg**61.56 ms
RMSE 90.43

thorvg render of mermaid-40-erd-relations — **thorvg**1.11 ms
RMSE 42.56

nanosvg render of mermaid-40-erd-relations — **nanosvg**2.64 ms
RMSE 48.35

mermaid-41-class-advanced (320×118px)

mermaid classDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-41-class-advanced — **Chromium (ground truth)**87.54 ms
reference

novasvg render of mermaid-41-class-advanced — **novasvg**2.66 ms
RMSE 28.22

resvg render of mermaid-41-class-advanced — **resvg**3.66 ms
RMSE 29.19

lunasvg render of mermaid-41-class-advanced — **lunasvg**2.43 ms
RMSE 35.81

cairosvg render of mermaid-41-class-advanced — **cairosvg**73.79 ms
RMSE 31.17

thorvg render of mermaid-41-class-advanced — **thorvg**0.74 ms
RMSE 32.09

nanosvg render of mermaid-41-class-advanced — **nanosvg**1.35 ms
RMSE 36.25

mermaid-42-mindmap-shapes (320×214px)

mermaid mindmap diagram (mmdc render)

Chromium (ground truth) render of mermaid-42-mindmap-shapes — **Chromium (ground truth)**80.26 ms
reference

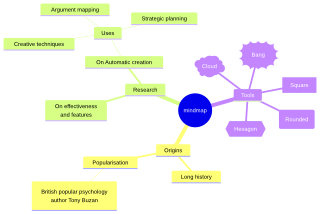

novasvg render of mermaid-42-mindmap-shapes — **novasvg**3.00 ms
RMSE 16.44

resvg render of mermaid-42-mindmap-shapes — **resvg**8.75 ms
RMSE 18.66

lunasvg render of mermaid-42-mindmap-shapes — **lunasvg**3.01 ms
RMSE 16.71

cairosvg render of mermaid-42-mindmap-shapes — **cairosvg**106.50 ms
RMSE 84.69

thorvg render of mermaid-42-mindmap-shapes — **thorvg**0.93 ms
RMSE 85.65

nanosvg render of mermaid-42-mindmap-shapes — **nanosvg**3.09 ms
RMSE 47.61

mermaid-43-timeline-sections (320×131px)

mermaid timeline diagram (mmdc render)

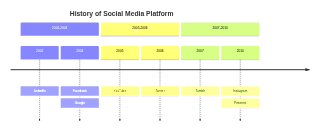

Chromium (ground truth) render of mermaid-43-timeline-sections — **Chromium (ground truth)**90.49 ms
reference

novasvg render of mermaid-43-timeline-sections — **novasvg**1.66 ms
RMSE 18.13

resvg render of mermaid-43-timeline-sections — **resvg**6.89 ms
RMSE 12.97

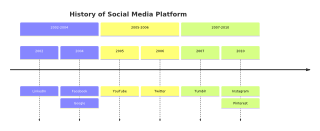

lunasvg render of mermaid-43-timeline-sections — **lunasvg**2.72 ms
RMSE 18.54

cairosvg render of mermaid-43-timeline-sections — **cairosvg**75.28 ms
RMSE 90.62

thorvg render of mermaid-43-timeline-sections — **thorvg**0.53 ms
RMSE 91.29

nanosvg render of mermaid-43-timeline-sections — **nanosvg**1.34 ms
RMSE 47.61

mermaid-44-pie-basic (320×252px)

mermaid pie diagram (mmdc render)

Chromium (ground truth) render of mermaid-44-pie-basic — **Chromium (ground truth)**70.96 ms
reference

novasvg render of mermaid-44-pie-basic — **novasvg**1.66 ms
RMSE 5.47

resvg render of mermaid-44-pie-basic — **resvg**2.48 ms
RMSE 11.75

lunasvg render of mermaid-44-pie-basic — **lunasvg**2.61 ms
RMSE 11.37

cairosvg render of mermaid-44-pie-basic — **cairosvg**22.32 ms
RMSE 37.63

thorvg render of mermaid-44-pie-basic — **thorvg**0.36 ms
RMSE 31.44

nanosvg render of mermaid-44-pie-basic — **nanosvg**1.81 ms
RMSE 20.67

mermaid-45-flowchart-markdown-labels (320×85px)

mermaid flowchart diagram (mmdc render)

Chromium (ground truth) render of mermaid-45-flowchart-markdown-labels — **Chromium (ground truth)**66.12 ms
reference

novasvg render of mermaid-45-flowchart-markdown-labels — **novasvg**1.52 ms
RMSE 18.67

resvg render of mermaid-45-flowchart-markdown-labels — **resvg**3.07 ms
RMSE 30.35

lunasvg render of mermaid-45-flowchart-markdown-labels — **lunasvg**1.14 ms
RMSE 25.39

cairosvg render of mermaid-45-flowchart-markdown-labels — **cairosvg**30.54 ms
RMSE 23.80

thorvg render of mermaid-45-flowchart-markdown-labels — **thorvg**0.32 ms
RMSE 131.55

nanosvg render of mermaid-45-flowchart-markdown-labels — **nanosvg**0.97 ms
RMSE 37.84

mermaid-46-sequence-actors-misc (320×254px)

mermaid sequenceDiagram diagram (mmdc render)

Chromium (ground truth) render of mermaid-46-sequence-actors-misc — **Chromium (ground truth)**67.24 ms
reference

novasvg render of mermaid-46-sequence-actors-misc — **novasvg**1.74 ms
RMSE 7.57

resvg render of mermaid-46-sequence-actors-misc — **resvg**4.35 ms
RMSE 8.09

lunasvg render of mermaid-46-sequence-actors-misc — **lunasvg**1.61 ms
RMSE 9.08

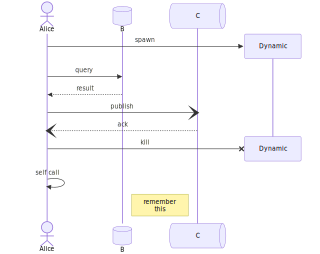

cairosvg render of mermaid-46-sequence-actors-misc — **cairosvg**37.68 ms
RMSE 12.03

thorvg render of mermaid-46-sequence-actors-misc — **thorvg**0.71 ms
RMSE 47.07

nanosvg render of mermaid-46-sequence-actors-misc — **nanosvg**1.49 ms
RMSE 48.48

mermaid-47-flowchart-br-bold-label (320×243px)

mermaid flowchart diagram (mmdc render)

Chromium (ground truth) render of mermaid-47-flowchart-br-bold-label — **Chromium (ground truth)**64.36 ms
reference

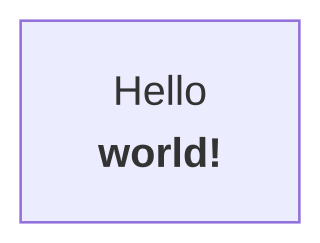

novasvg render of mermaid-47-flowchart-br-bold-label — **novasvg**0.66 ms
RMSE 15.24

resvg render of mermaid-47-flowchart-br-bold-label — **resvg**2.67 ms
RMSE 27.70

lunasvg render of mermaid-47-flowchart-br-bold-label — **lunasvg**0.36 ms
RMSE 27.73

cairosvg render of mermaid-47-flowchart-br-bold-label — **cairosvg**23.95 ms
RMSE 27.66

thorvg render of mermaid-47-flowchart-br-bold-label — **thorvg**0.23 ms
RMSE 175.97

nanosvg render of mermaid-47-flowchart-br-bold-label — **nanosvg**1.95 ms
RMSE 34.31

mermaid-48-flowchart-bold-italic-runs (320×45px)

mermaid flowchart diagram (mmdc render)

Chromium (ground truth) render of mermaid-48-flowchart-bold-italic-runs — **Chromium (ground truth)**64.99 ms
reference

novasvg render of mermaid-48-flowchart-bold-italic-runs — **novasvg**1.32 ms
RMSE 16.97

resvg render of mermaid-48-flowchart-bold-italic-runs — **resvg**2.59 ms
RMSE 23.65

lunasvg render of mermaid-48-flowchart-bold-italic-runs — **lunasvg**0.52 ms
RMSE 23.01

cairosvg render of mermaid-48-flowchart-bold-italic-runs — **cairosvg**26.28 ms
RMSE 21.99

thorvg render of mermaid-48-flowchart-bold-italic-runs — **thorvg**0.27 ms
RMSE 152.20

nanosvg render of mermaid-48-flowchart-bold-italic-runs — **nanosvg**0.79 ms
RMSE 37.22

Built entirely by benchmarks/CMakeLists.txt (cmake --build build --target novasvg_benchmark) from novasvg's own data/ sample corpus. novasvg, resvg, lunasvg, thorvg and nanosvg are each driven directly through their own C/C++ API in one process (native/*_native_bench.cpp), with no CLI, no per-render subprocess and no Python bindings. cairosvg is the one exception (it has no native library of its own to link against) and runs through its Python binding instead. Chromium (ground truth) is driven through Playwright. Every render is a plain PNG under renders/ next to this page and the numbers are in render_benchmark.json; keep the three together, no server or network is needed to view them, apart from the web fonts, which fall back to system fonts offline.
